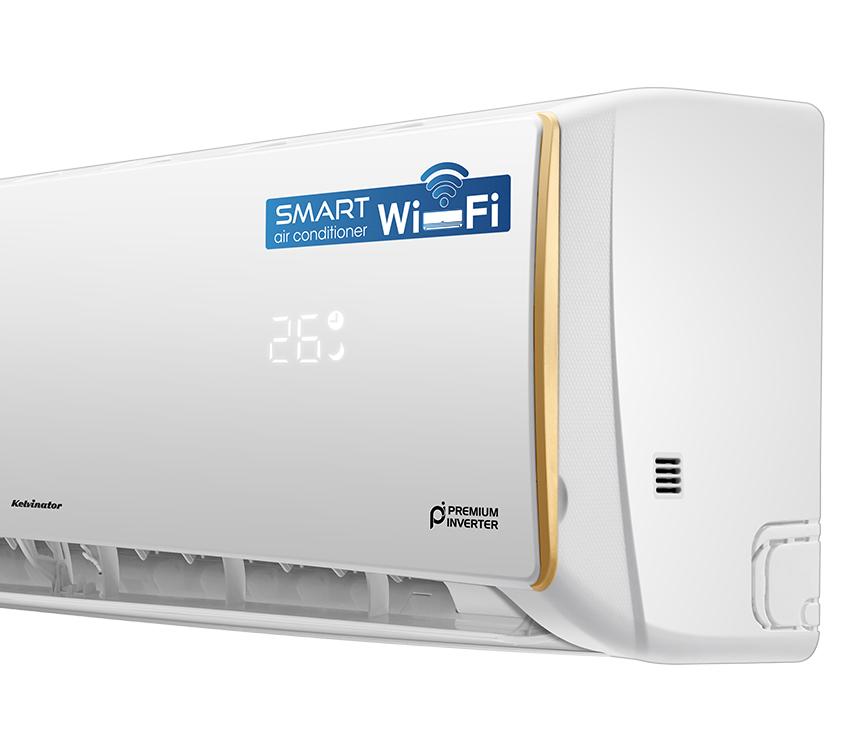

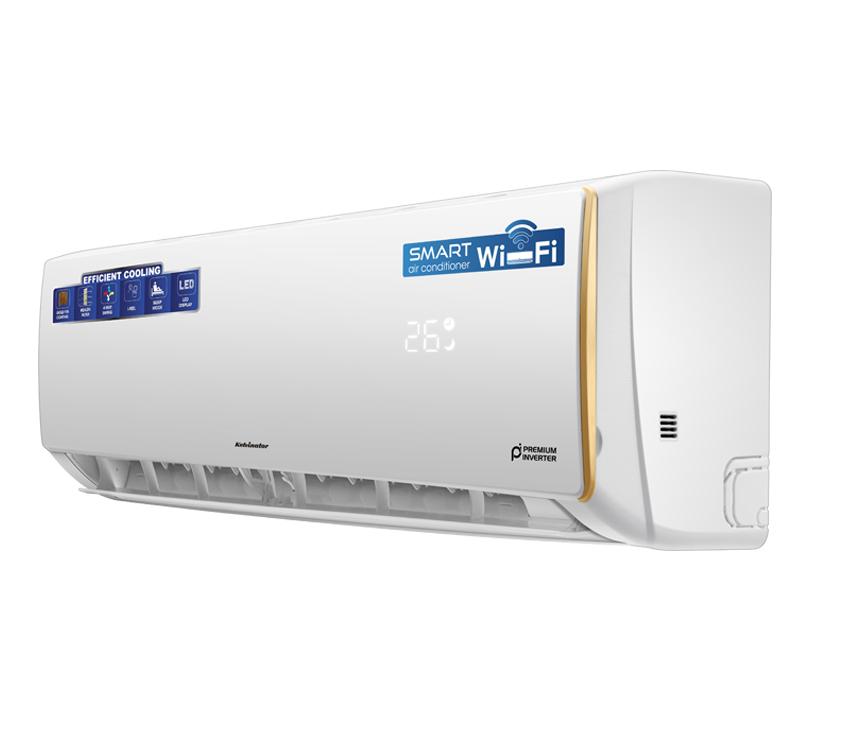

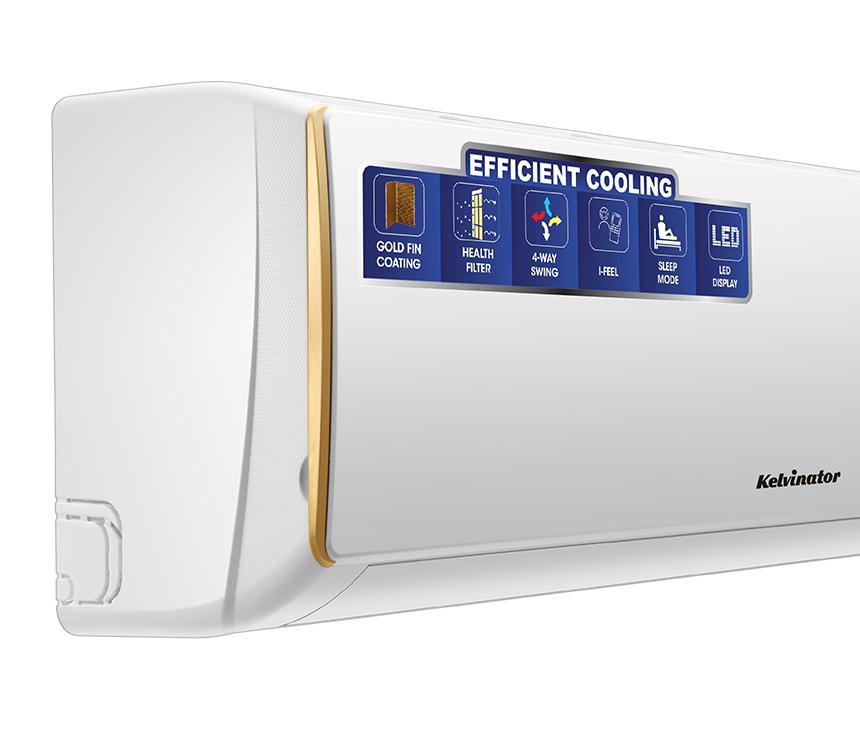

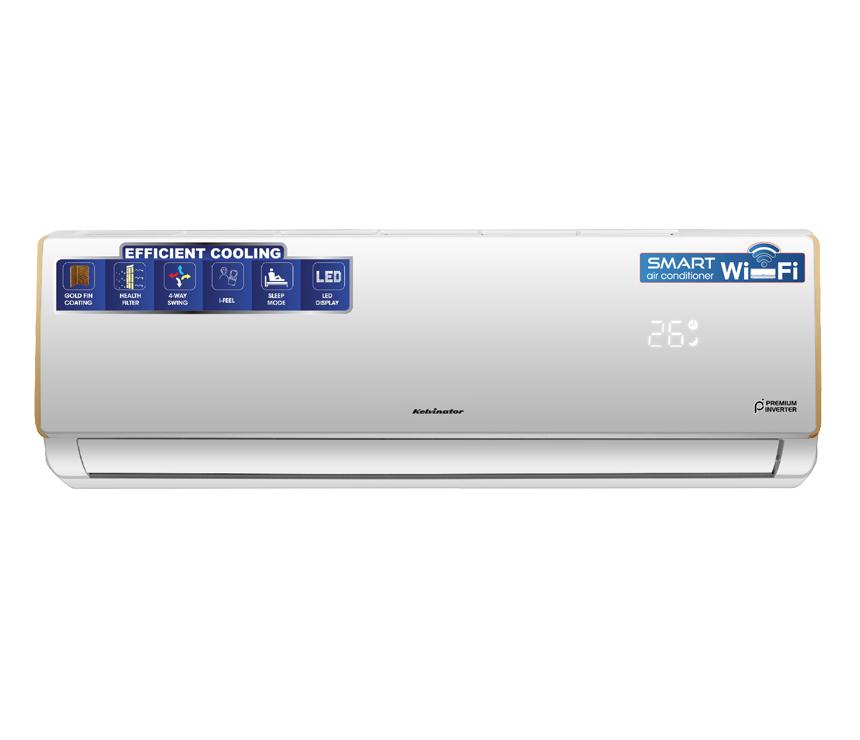

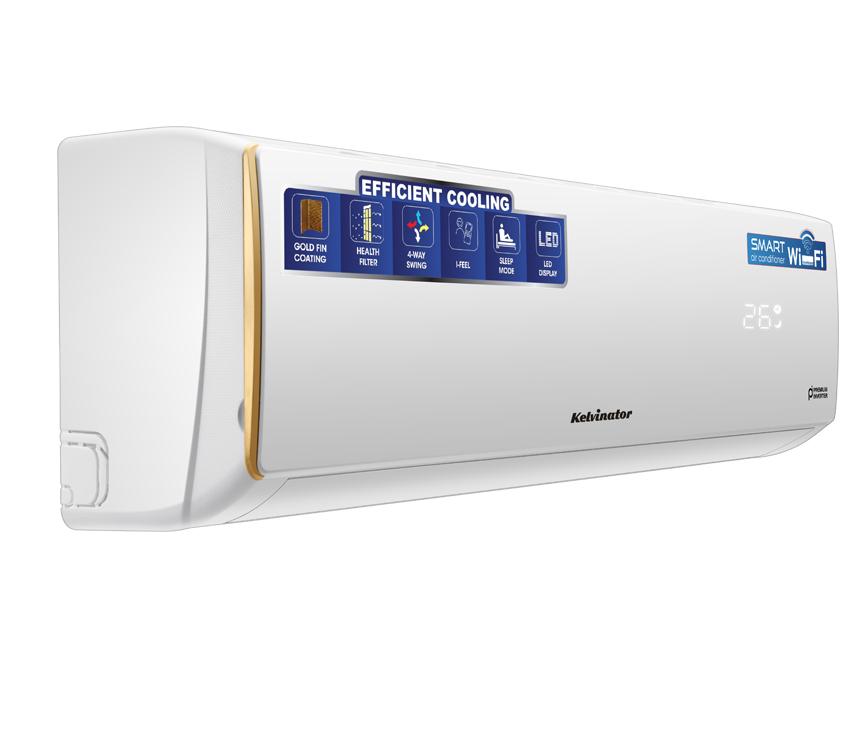

KELVINATOR 01 TON SMART-WI-FI INVERTER SPLIT TYPE AC

Reviews

Model:

KSV-12TPINV-SW
BDT 56,900

SHARE:

Model Name
KSV-12TPINV-SW
Type
Coolling only
Control type
Remote
Power supply
Ph-V-Hz
1Ph-220-240V~50Hz
Voltage Range
V
198~242
Cooling

Capacity
Btu/h
12000(2730~12500)
Capacity
W
3200(800~3665)
Rated power Input
W
994(250~1450)
Rated current
A
4.6(1.2~7.5)
EER
W/W
3.22
Max power Input
W
1450
Max current
A
7.5
Indoor coil
a.Number of rows

2
b.Tube pitch(a)x row pitch(b)
mm
21×12.7
c.Fin spacing
mm
1.5
e.Tube outside dia.and type
mm
Φ7,innergroove tube
f.Coil length x height x width
mm
/
g.Number of circuits

1 in 2 out
Outdoor coil
a.Number of rows

1
b.Tube pitch(a)x row pitch(b)
mm
19.5×11.6
c.Fin spacing
mm
1.2
e.Tube outside dia.and type
mm
Φ5,innergroove tube
f.Coil length x height x width
mm
/
g.Number of circuits

1 in 1 out
Indoor unit
Dimension(W*D*H)
mm
776×250×202
Packing   (W*D*H)
mm
840×315×260
Net/Gross weight
Kg
8/10
Outdoor unit
Dimension(W*D*H)
mm
787×290×498
Packing  (W*D*H)
mm
818×325×520
Net/Gross weight
Kg
22/26
Refrigerant piping
Liquid side/ Gas side
mm(inch)
φ6(1/4")/φ9.52(3/8")
Max. refrigerant pipe length
m
15
Max. difference in level
m
5
Pressure
High(DP)
MPa
4.5
Low(SP)
MPa
1.9
Refrigerant

R410A/0.53kg
Ambient temperature
-15~50
Suitable area
m2
15~23
Connecting Wiring
Size x Core number
4×1.0mm²×5.8m
Power supply cord
AWG16
Qty 40'HQ
310
