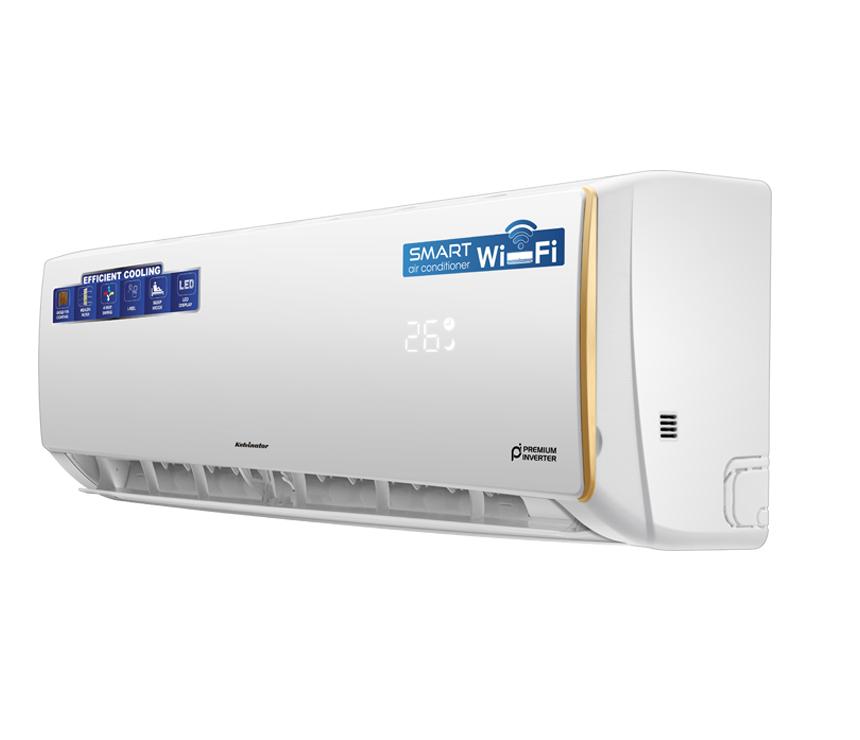

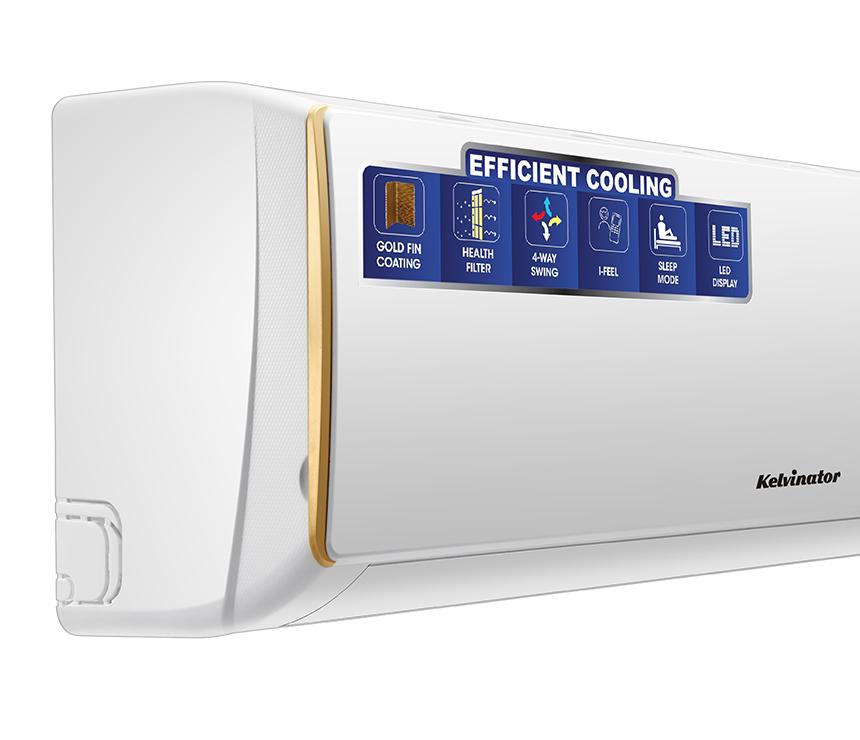

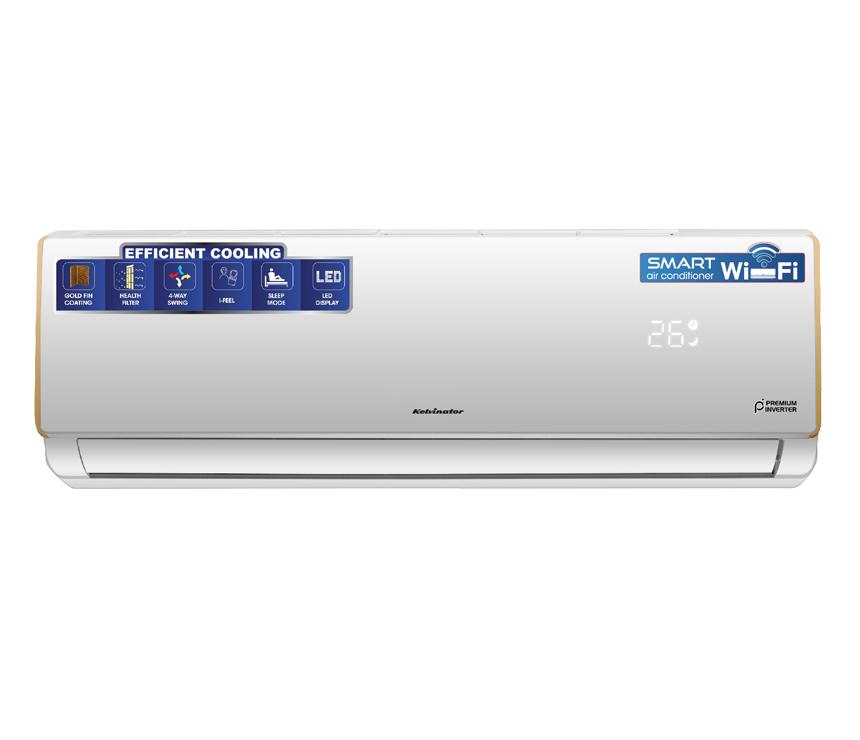

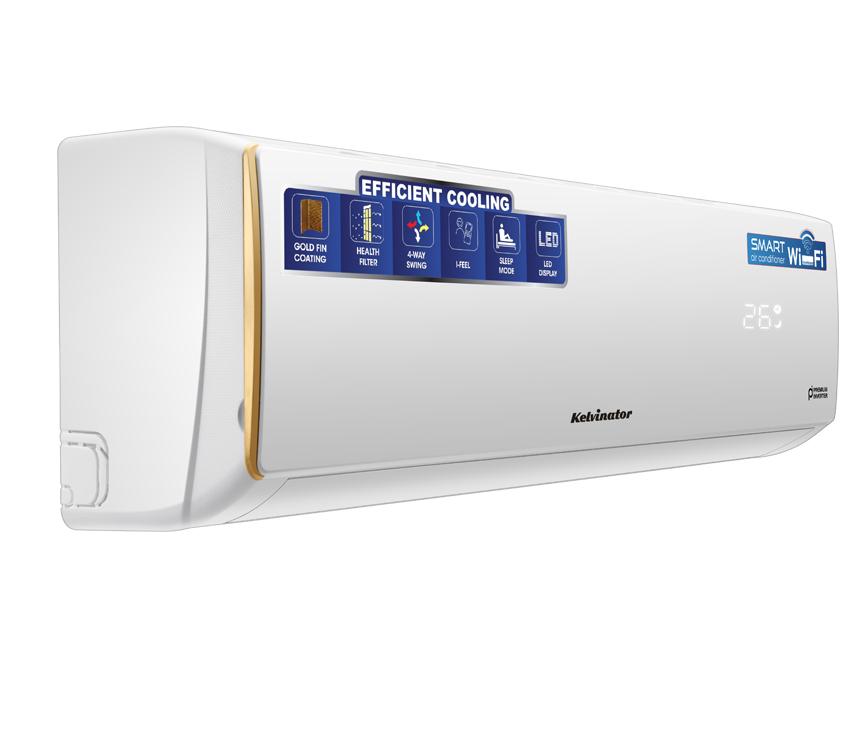

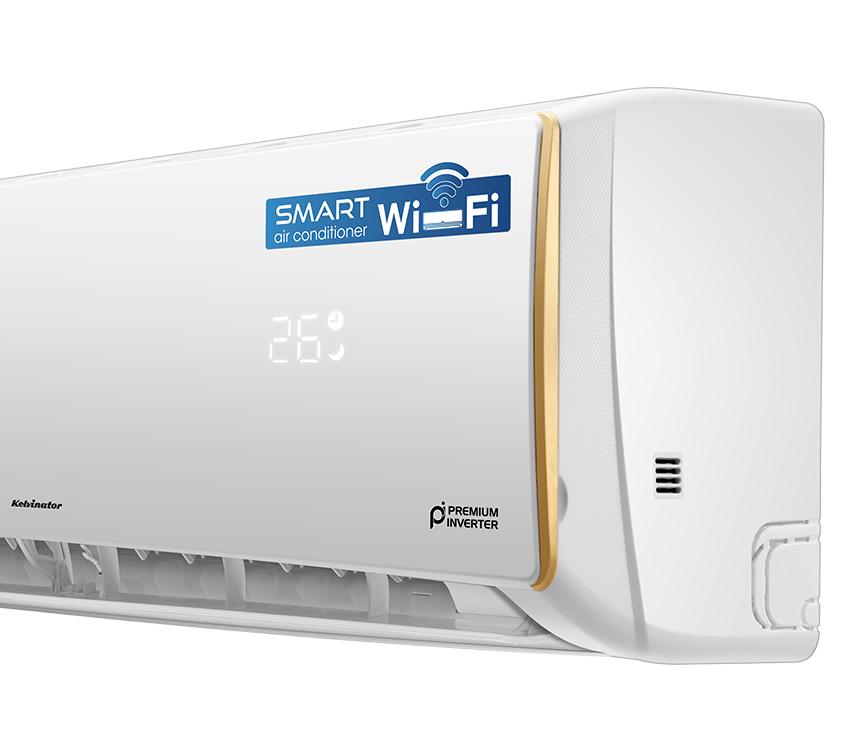

KELVINATOR 02 TON SMART-WI-FI INVERTER SPLIT TYPE AC
Reviews
Model:
KSV-24TPINV-SWEMI From 3788 Tk/month
Available Bank EMI
SHARE:
Model Name | KSV-24TPINV-SW | ||||
Type | Cooling only | ||||
Control type | Remote | ||||
Power supply | Ph-V-Hz | 208-230V~/50Hz/1P | |||
Voltage Range | V | 165~265 | |||
Cooling | Capacity | Btu/h | 24000(4090~24900) | ||
Capacity | W | 7035(1200~7300) | |||
Rated power Input | W | 2185(300~2800) | |||
Rated current | A | 10.1(2.5~13.5) | |||
EER | W/W | 3.22 | |||
Max power Input | W | 2800 | |||
Max current | A | 13.5 | |||
Indoor coil | a.Number of rows | 2 | |||
b.Tube pitch(a)x row pitch(b) | mm | 21×12.7 | |||
c.Fin spacing | mm | 1.4 | |||
e.Tube outside dia.and type | mm | Φ7,innergroove tube | |||
f.Coil length x height x width | mm | / | |||
g.Number of circuits | 4 in 4 out | ||||
Outdoor coil | a.Number of rows | 2 | |||
b.Tube pitch(a)x row pitch(b) | mm | 19.5×11.6 | |||
c.Fin spacing | mm | 1.2 | |||
e.Tube outside dia.and type | mm | Φ5,innergroove tube | |||
f.Coil length x height x width | mm | / | |||
g.Number of circuits | 3 in 3 out | ||||
Indoor unit | Dimension(W*D*H) | mm | 1010×315×220 | ||
Packing (W*D*H) | mm | 1096×390×297 | |||
Net/Gross weight | Kg | 13/16 | |||
Outdoor unit | Dimension(W*D*H) | mm | 853×349×602 | ||
Packing (W*D*H) | mm | 890×385×628 | |||
Net/Gross weight | Kg | 30/35 | |||
Refrigerant piping | Liquid side/ Gas side | mm(inch) | φ6(1/4")/φ12(1/2") | ||
Max. refrigerant pipe length | m | 15 | |||
Max. difference in level | m | 5 | |||
Pressure | High(DP) | MPa | 4.5 | ||
Low(SP) | MPa | 1.9 | |||
Refrigerant | R410A/990g | ||||
Ambient temperature | ℃ | -15~50 | |||
Suitable area | m2 | 30~50 | |||
Connecting Wiring |
| 4×0.75mm2 | |||
Power supply cord | 3×1.5mm² | ||||
Model Name | KSV-24TPINV-SW | ||||
Type | Cooling only | ||||
Control type | Remote | ||||
Power supply | Ph-V-Hz | 208-230V~/50Hz/1P | |||
Voltage Range | V | 165~265 | |||
Cooling | Capacity | Btu/h | 24000(4090~24900) | ||
Capacity | W | 7035(1200~7300) | |||
Rated power Input | W | 2185(300~2800) | |||
Rated current | A | 10.1(2.5~13.5) | |||
EER | W/W | 3.22 | |||
Max power Input | W | 2800 | |||
Max current | A | 13.5 | |||
Indoor coil | a.Number of rows | 2 | |||
b.Tube pitch(a)x row pitch(b) | mm | 21×12.7 | |||
c.Fin spacing | mm | 1.4 | |||
e.Tube outside dia.and type | mm | Φ7,innergroove tube | |||
f.Coil length x height x width | mm | / | |||
g.Number of circuits | 4 in 4 out | ||||
Outdoor coil | a.Number of rows | 2 | |||
b.Tube pitch(a)x row pitch(b) | mm | 19.5×11.6 | |||
c.Fin spacing | mm | 1.2 | |||
e.Tube outside dia.and type | mm | Φ5,innergroove tube | |||
f.Coil length x height x width | mm | / | |||
g.Number of circuits | 3 in 3 out | ||||
Indoor unit | Dimension(W*D*H) | mm | 1010×315×220 | ||
Packing (W*D*H) | mm | 1096×390×297 | |||
Net/Gross weight | Kg | 13/16 | |||
Outdoor unit | Dimension(W*D*H) | mm | 853×349×602 | ||
Packing (W*D*H) | mm | 890×385×628 | |||
Net/Gross weight | Kg | 30/35 | |||
Refrigerant piping | Liquid side/ Gas side | mm(inch) | φ6(1/4")/φ12(1/2") | ||
Max. refrigerant pipe length | m | 15 | |||
Max. difference in level | m | 5 | |||
Pressure | High(DP) | MPa | 4.5 | ||
Low(SP) | MPa | 1.9 | |||
Refrigerant | R410A/990g | ||||
Ambient temperature | ℃ | -15~50 | |||
Suitable area | m2 | 30~50 | |||
Connecting Wiring |
| 4×0.75mm2 | |||
Power supply cord | 3×1.5mm² | ||||
N/A
N/A
N/A
10 Years’ Compressor & 02 Years’s Parts & Service.
