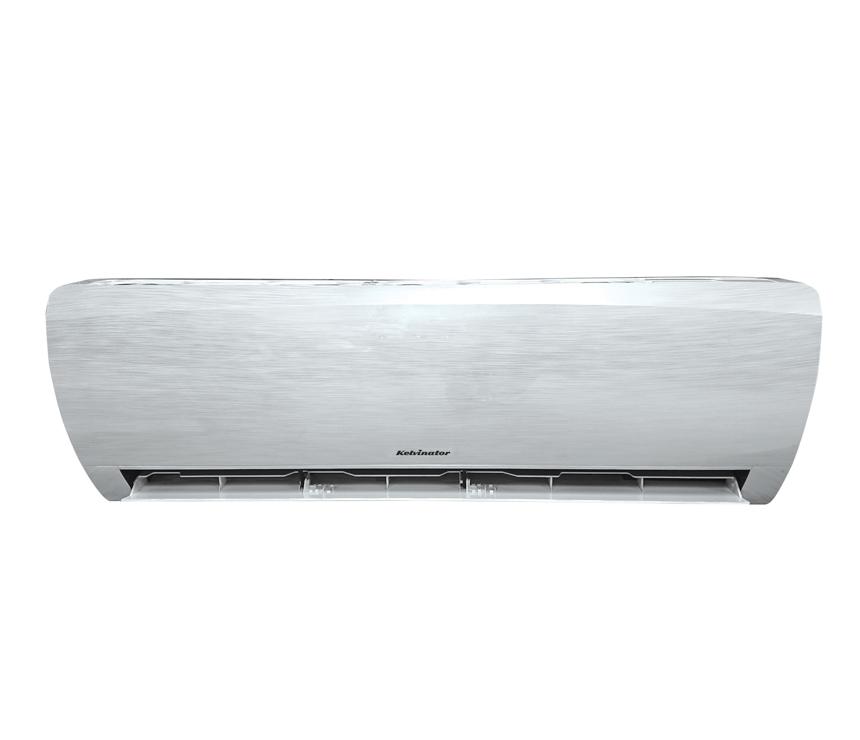

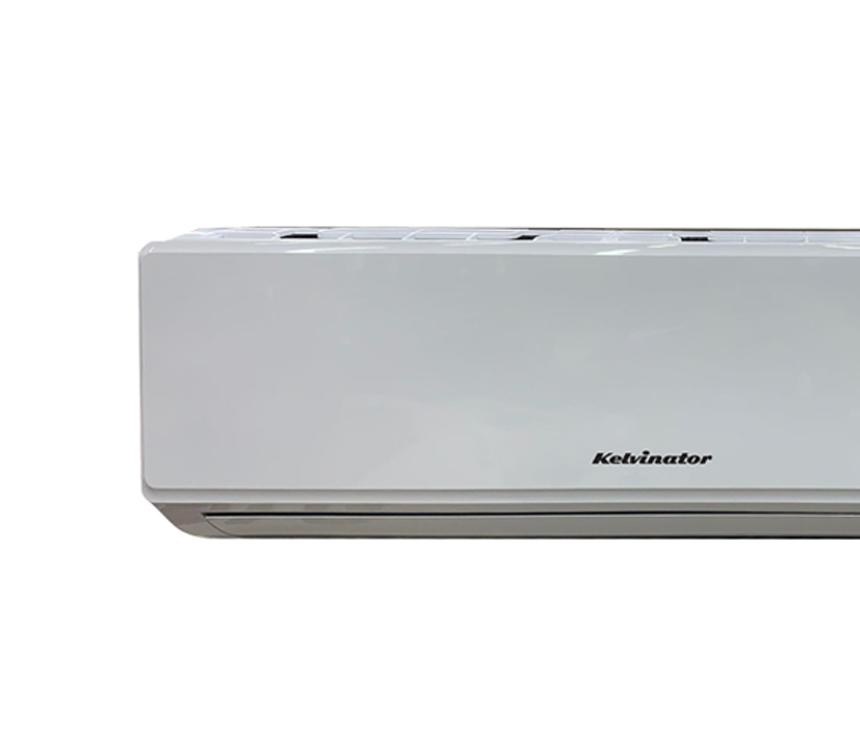

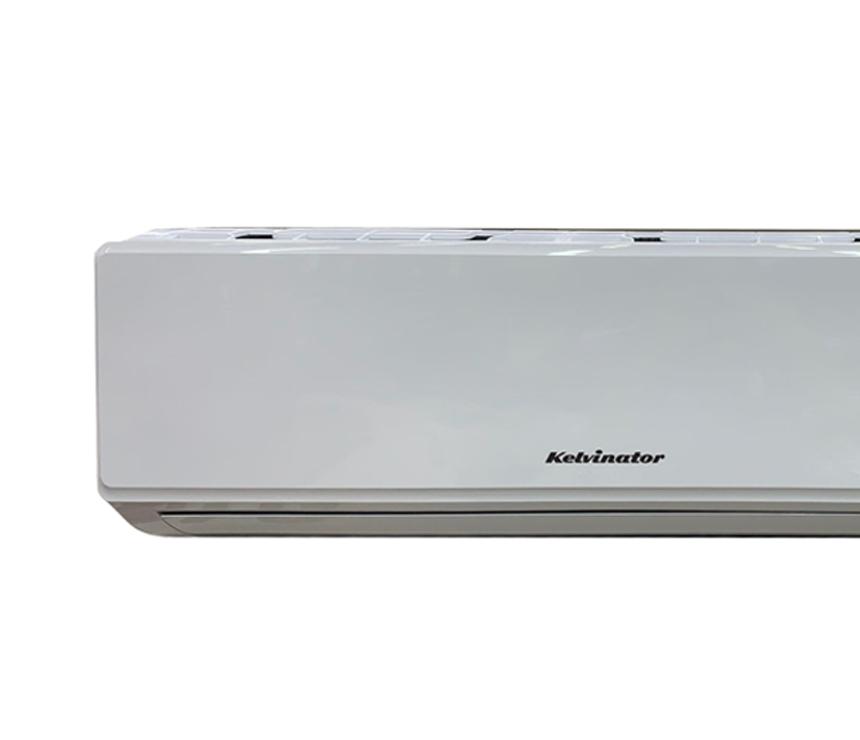

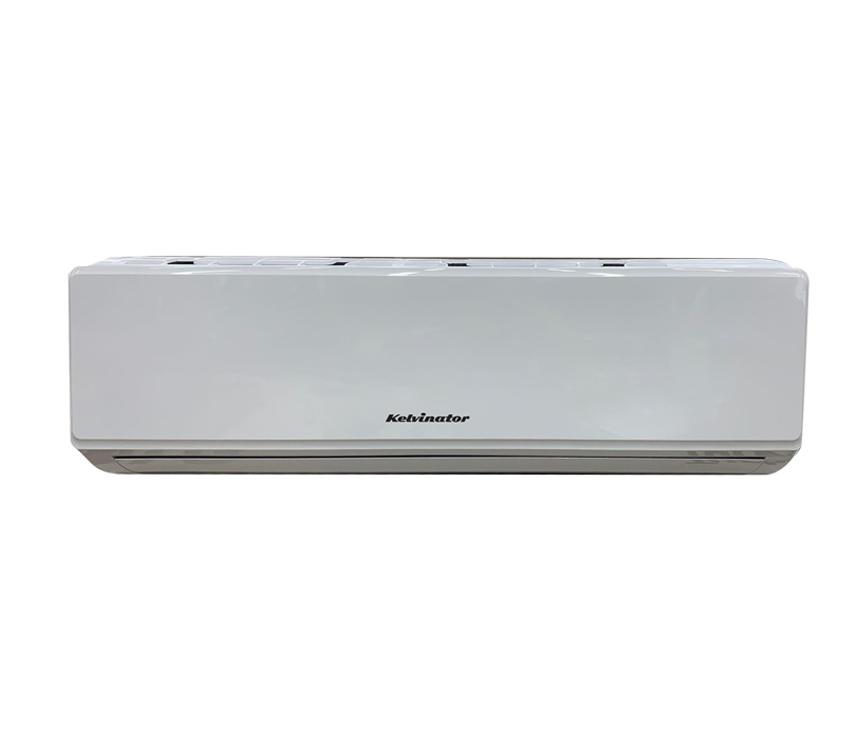

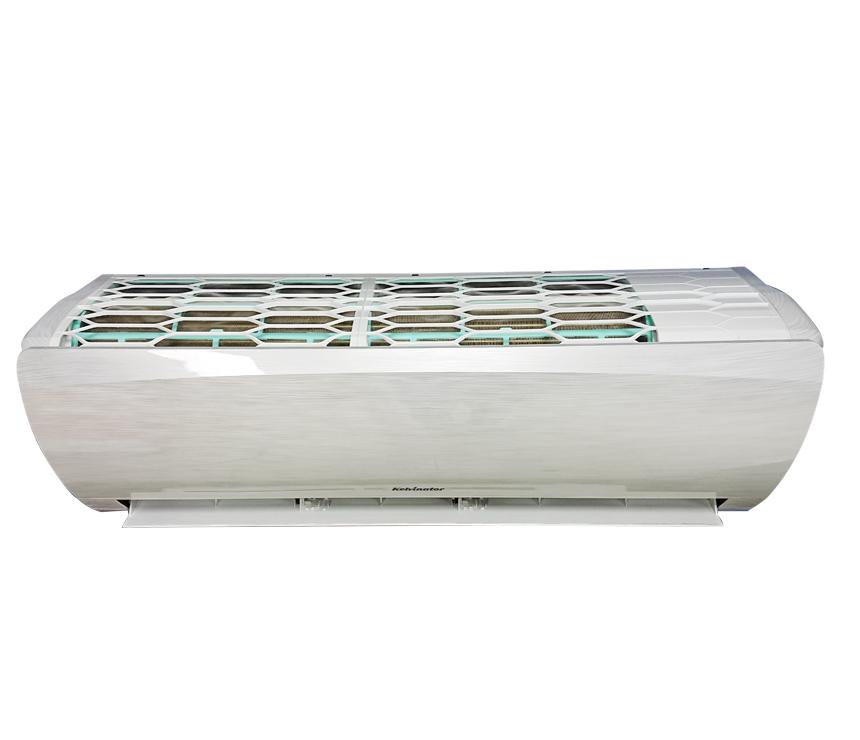

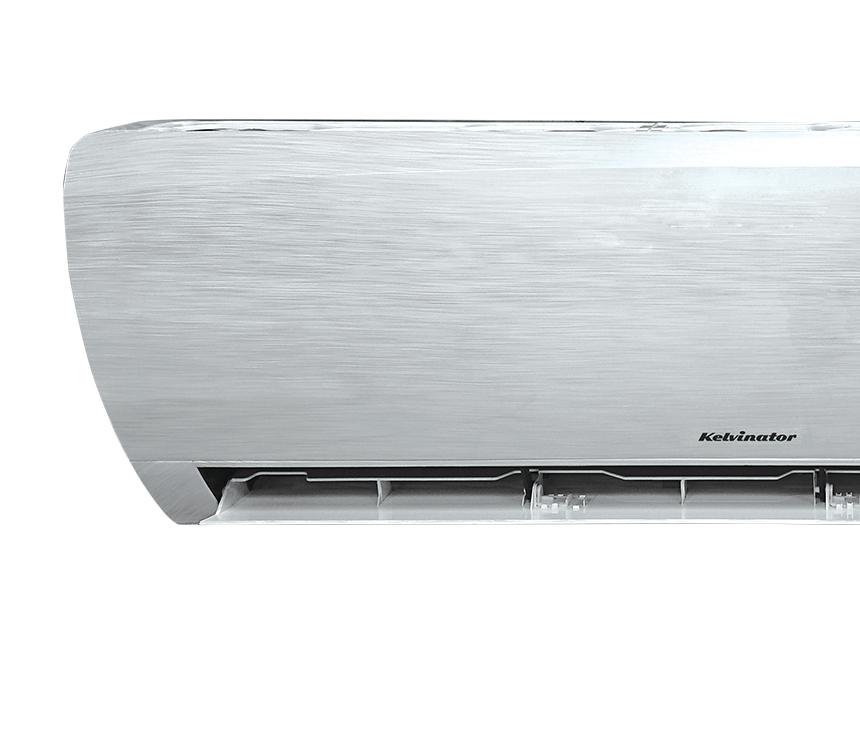

Kelvinator 1 Ton Split Type AC
Reviews
Model:
KSV-12NVBDSHARE:
UNITS | KSV-12NVBD | |||
About MODEL | Type of AC : | Split / Window/Light Commercial/VRF/Chill | Details | Split |
Fixed Speed / Inverter | Details | Fixed Speed | ||
Cool only/ Heat & cool | Details | Cool only | ||
Product selling | Country name | Details | Bangladesh | |
Capacity: | Cooling capacity | Watt | 3517 | |
Heating capacity | Watt | N/A | ||
Operating Conditions | Power supply | Rated Voltage & phase | Volts | 230V & Single |
Rated frequency | Hz | 50Hz | ||
Running Condition | Withstanding Operating conditions | °C | 20-43 | |
Cooling Area | sq.ft | 90-120 | ||
Lowest running voltage | Volts | 170 | ||
Highest running voltage | Volts | 264 | ||
Cooling | Capacity at rated condition (If required) | Watt | 3517 | |
Power consumption in rated condition | Watt | 1260 | ||
Performanc | Cooling data | SEER/EER/COP (If any special requirement) | W/W | 2.8 |
Cooling Input Current | A | 5.6 | ||
Max. Input Current | A | 9.2 | ||
Heating data | SEER/EER/COP (If any special requirement) | kWh / kWh | N/A | |
Cooling Input Current | A | N/A | ||
Motor | Motor Type : Single Phase Induction | Details | Induction (PG) | |
Motors Mechanical output Wattage | Watt | 25 | ||
Capacitor | uF | 1.5 | ||
Indoor Fan speed (Turbo/High/Medium/Low) | r/min | 1300/1250/1100/1000 | ||
Thermal protector | Yes/ No | Yes | ||
Fan | Dimensions (Dia* Length) | mm | Φ97, L- 648±1 | |
Material of Blades | Details | SAN 30% GF | ||
Control board | Transformer Base/ SMPS Base | Details | SMPS | |
PU/ Protective layer | Details | PU | ||
EMI/EMC compatible | Details | NO | ||
Details | NO | |||
Display PCB : LCD Display/ 7Seg Display/ LED indicators | Details | LED Digit Display | ||
Swing Motors : Qty , Purpose | Details | 2, Left/right, Up/Down | ||
Temperature sensor : Nos & Locations | Details | 2, air inlet, Eva inlet | ||
Other | Filter Type | Details | Mesh Filter | |
Power cord & Plug | Details | Yes, 1.5 Meter | ||
Connecting wire between IDU & ODU : Leng | meter | 3.5 | ||
Connecting tube(CU with insulation) between | meter | 3±0.05 | ||
Compressor | Preferred Model | Details | ASG130GV-A7AU | |
Type : Fixed speed / Inverter | Details | Fixed Speed | ||
Inverter Frequency Range : Min to Max | Hz | N/A | ||
Locked rotor Amp(LRA) | A | 31 at 240 V | ||
Thermal protector | Yes/ No | Yes | ||
Over load Protector (Location) | Details | internal | ||
Capacitor (If applicable) | uF | 40 | ||
Fan motor | Motor Type : Single Phase Induction | Details | Induction | |
Motors Mechanical output Wattage | Watt | 25 | ||
Capacitor | μF | 2.5 | ||
Outdoor Fan speed | R/min | 850 | ||
or Unit Information | Thermal protector | Yes/ No | Yes | |
Fan | Dimensions (Dia* Hight) | mm | Φ400, H-115 | |
Number of Blades | No's | 3 | ||
Material of Blades | Details | ABS 20%GF | ||
Condenser | Rows*Tubes | No's | 1*11 | |
Tube pitch(a)x row pitch(b) | mm | 21 x 12.7 | ||
Coil length | mm | 820 | ||
Tube outside & Inside diameter | mm | ODΦ7.0 x 0.25+0.18 IGT | ||
Tube Material & Grade | Details | DHP COPPER, C12200 | ||
Fin Type | Details | Slit | ||
Fin spacing | mm | 1.2 | ||
Fin Material | Details | Aluminum (Hydrophilic Golden coated) | ||
Other | Gas/ Refrigerant Type | Details | R-410A | |
Gas/ Refrigerant Qty | KG | 0.7 | ||
UNITS | KSV-12NVBD | |||
About MODEL | Type of AC : | Split / Window/Light Commercial/VRF/Chill | Details | Split |
Fixed Speed / Inverter | Details | Fixed Speed | ||
Cool only/ Heat & cool | Details | Cool only | ||
Product selling | Country name | Details | Bangladesh | |
Capacity: | Cooling capacity | Watt | 3517 | |
Heating capacity | Watt | N/A | ||
Operating Conditions | Power supply | Rated Voltage & phase | Volts | 230V & Single |
Rated frequency | Hz | 50Hz | ||
Running Condition | Withstanding Operating conditions | °C | 20-43 | |
Cooling Area | sq.ft | 90-120 | ||
Lowest running voltage | Volts | 170 | ||
Highest running voltage | Volts | 264 | ||
Cooling | Capacity at rated condition (If required) | Watt | 3517 | |
Power consumption in rated condition | Watt | 1260 | ||
Performanc | Cooling data | SEER/EER/COP (If any special requirement) | W/W | 2.8 |
Cooling Input Current | A | 5.6 | ||
Max. Input Current | A | 9.2 | ||
Heating data | SEER/EER/COP (If any special requirement) | kWh / kWh | N/A | |
Cooling Input Current | A | N/A | ||
Motor | Motor Type : Single Phase Induction | Details | Induction (PG) | |
Motors Mechanical output Wattage | Watt | 25 | ||
Capacitor | uF | 1.5 | ||
Indoor Fan speed (Turbo/High/Medium/Low) | r/min | 1300/1250/1100/1000 | ||
Thermal protector | Yes/ No | Yes | ||
Fan | Dimensions (Dia* Length) | mm | Φ97, L- 648±1 | |
Material of Blades | Details | SAN 30% GF | ||
Control board | Transformer Base/ SMPS Base | Details | SMPS | |
PU/ Protective layer | Details | PU | ||
EMI/EMC compatible | Details | NO | ||
Details | NO | |||
Display PCB : LCD Display/ 7Seg Display/ LED indicators | Details | LED Digit Display | ||
Swing Motors : Qty , Purpose | Details | 2, Left/right, Up/Down | ||
Temperature sensor : Nos & Locations | Details | 2, air inlet, Eva inlet | ||
Other | Filter Type | Details | Mesh Filter | |
Power cord & Plug | Details | Yes, 1.5 Meter | ||
Connecting wire between IDU & ODU : Leng | meter | 3.5 | ||
Connecting tube(CU with insulation) between | meter | 3±0.05 | ||
Compressor | Preferred Model | Details | ASG130GV-A7AU | |
Type : Fixed speed / Inverter | Details | Fixed Speed | ||
Inverter Frequency Range : Min to Max | Hz | N/A | ||
Locked rotor Amp(LRA) | A | 31 at 240 V | ||
Thermal protector | Yes/ No | Yes | ||
Over load Protector (Location) | Details | internal | ||
Capacitor (If applicable) | uF | 40 | ||
Fan motor | Motor Type : Single Phase Induction | Details | Induction | |
Motors Mechanical output Wattage | Watt | 25 | ||
Capacitor | μF | 2.5 | ||
Outdoor Fan speed | R/min | 850 | ||
or Unit Information | Thermal protector | Yes/ No | Yes | |
Fan | Dimensions (Dia* Hight) | mm | Φ400, H-115 | |
Number of Blades | No's | 3 | ||
Material of Blades | Details | ABS 20%GF | ||
Condenser | Rows*Tubes | No's | 1*11 | |
Tube pitch(a)x row pitch(b) | mm | 21 x 12.7 | ||
Coil length | mm | 820 | ||
Tube outside & Inside diameter | mm | ODΦ7.0 x 0.25+0.18 IGT | ||
Tube Material & Grade | Details | DHP COPPER, C12200 | ||
Fin Type | Details | Slit | ||
Fin spacing | mm | 1.2 | ||
Fin Material | Details | Aluminum (Hydrophilic Golden coated) | ||
Other | Gas/ Refrigerant Type | Details | R-410A | |
Gas/ Refrigerant Qty | KG | 0.7 | ||
N/A
N/A
N/A
05 Years Compressor & 02 Years Parts & Service Warranty
