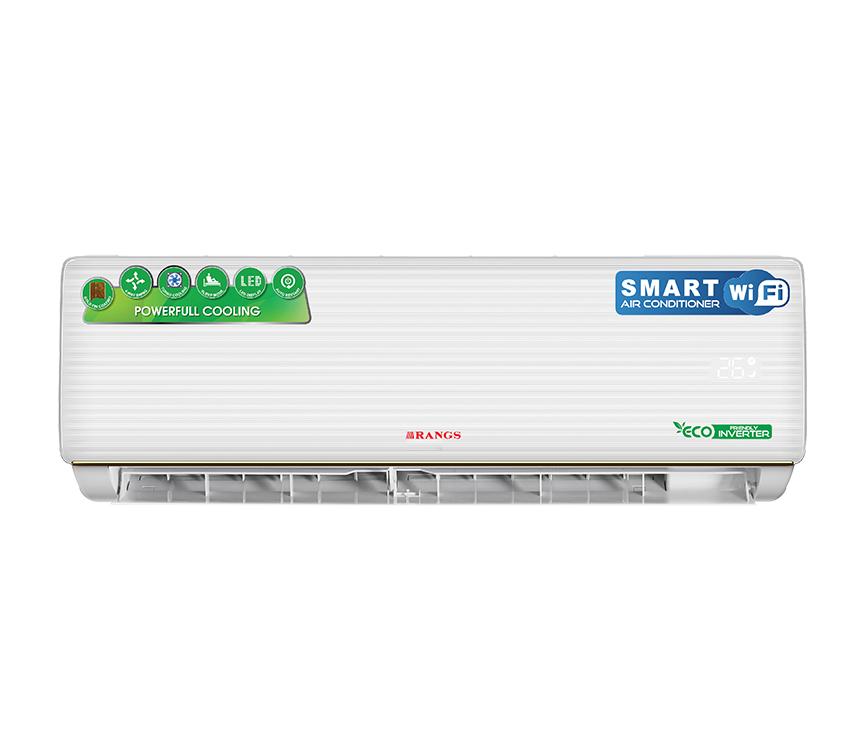

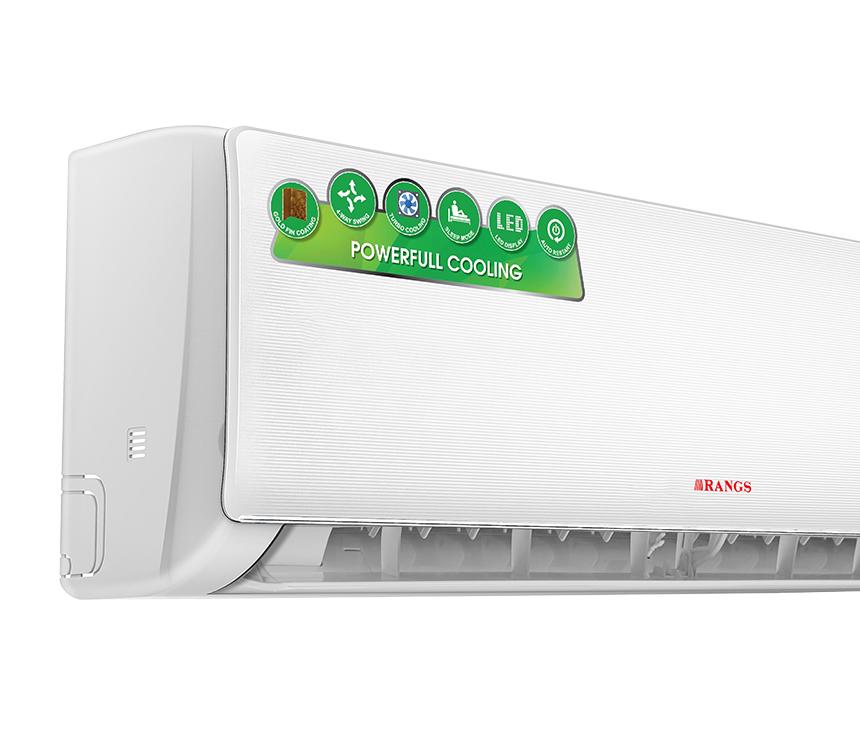

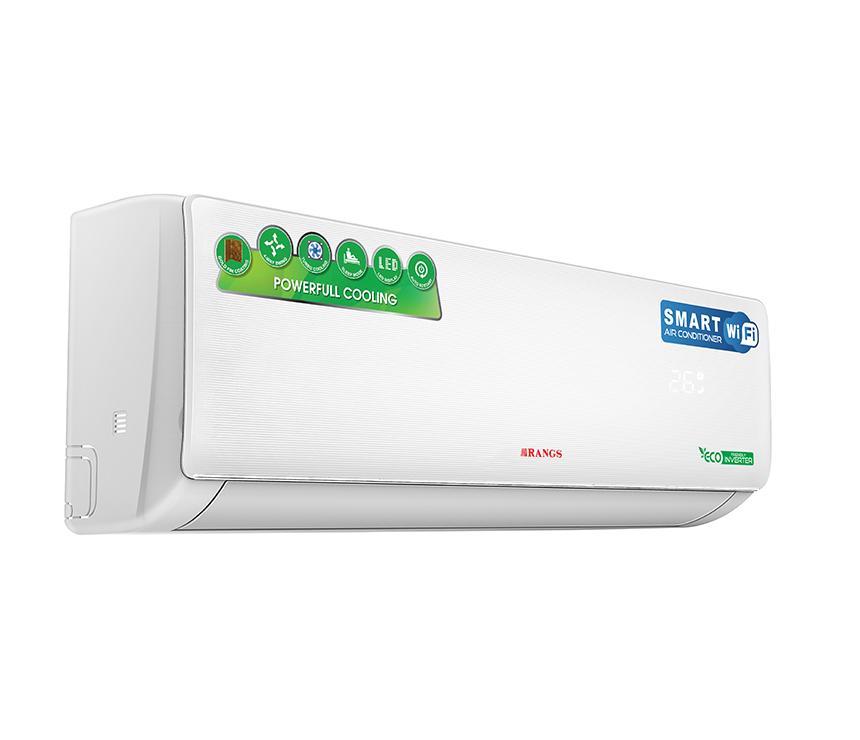

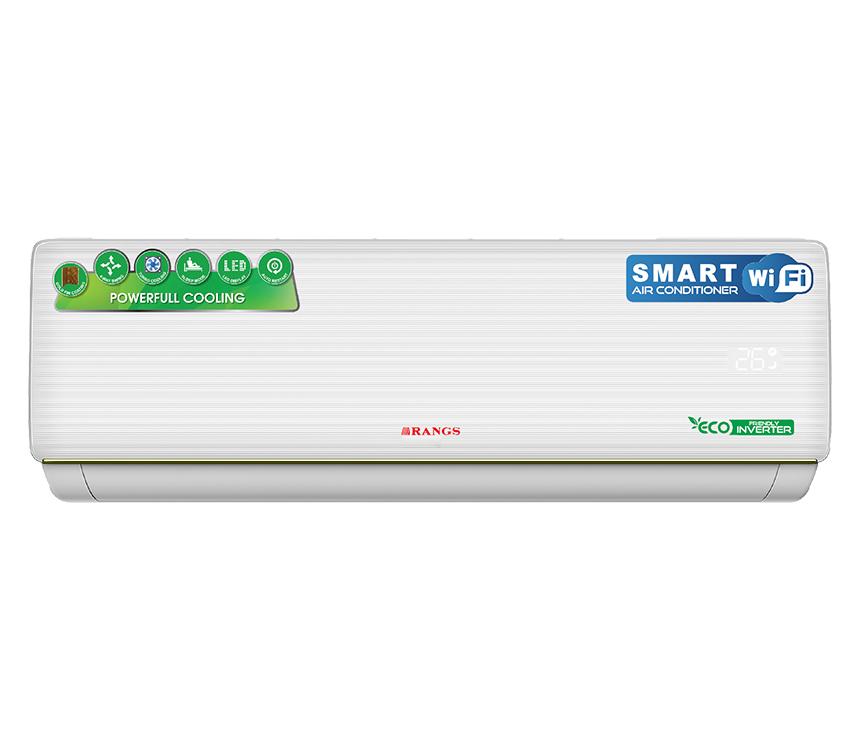

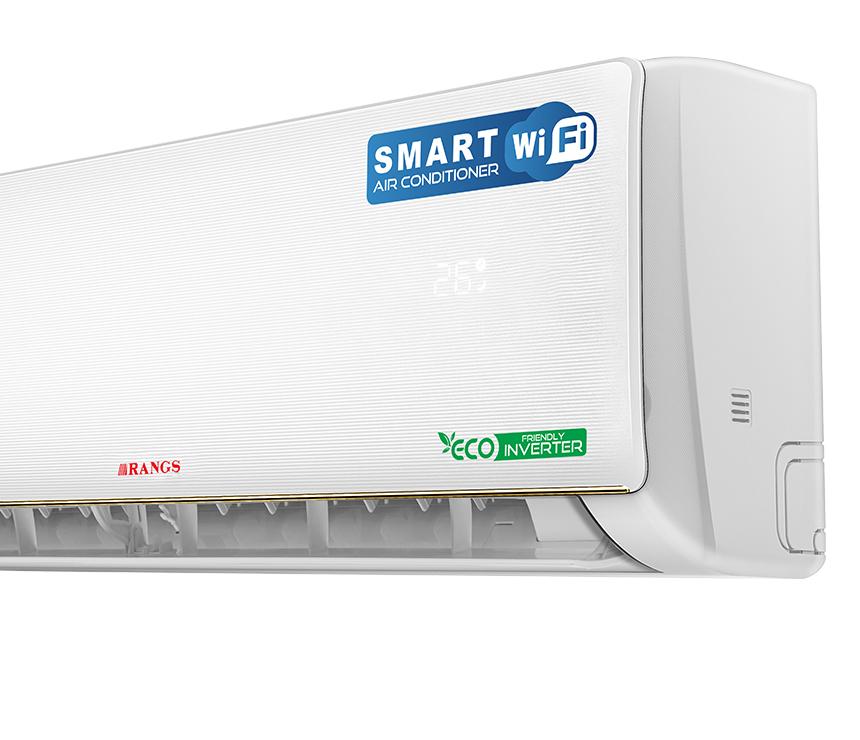

RANGS 02 TON SMART-WI-FI INVERTER SPLIT TYPE AC
Reviews
Model:
RSDC-24RTSIEMI From 3330 Tk/month
Available Bank EMI
SHARE:
Model Name | RSDC-24RTSI | |||||
Type | Cooling only | |||||
Control type | Remote | |||||
Power supply | Ph-V-Hz | 208-230V~/50Hz/1P | ||||
Voltage Range | V | 165~265 | ||||
Cooling | Capacity | Btu/h | 24000(4090~24900) | |||
Capacity | W | 7035(1200~7300) | ||||
Rated power Input | W | 2314(300~2800) | ||||
Rated current | A | 10.7(2.5~13.5) | ||||
EER | W/W | 3.04 | ||||
Max power Input | W | 2800 | ||||
Max current | A | 13.5 | ||||
Indoor coil | a.Number of rows | 2 | ||||
b.Tube pitch(a)x row pitch(b) | mm | 21×12.7 | ||||
c.Fin spacing | mm | 1.4 | ||||
e.Tube outside dia.and type | mm | Φ7,innergroove tube | ||||
f.Coil length x height x width | mm | / | ||||
g.Number of circuits | 4 in 4 out | |||||
Outdoor coil | a.Number of rows | 2 | ||||
b.Tube pitch(a)x row pitch(b) | mm | 19.5×11.6 | ||||
c.Fin spacing | mm | 1.2 | ||||
e.Tube outside dia.and type | mm | Φ5,innergroove tube | ||||
f.Coil length x height x width | mm | / | ||||
g.Number of circuits | 3 in 3 out | |||||
Indoor unit | Dimension(W*D*H) | mm | 1010×315×220 | |||
Packing (W*D*H) | mm | 1096×390×297 | ||||
Net/Gross weight | Kg | 13/16 | ||||
Outdoor unit | Dimension(W*D*H) | mm | 853×349×602 | |||
Packing (W*D*H) | mm | 890×385×628 | ||||
Net/Gross weight | Kg | 30/35 | ||||
Pressure | High(DP) | MPa | 4.5 | |||
Low(SP) | MPa | 1.9 | ||||
Refrigerant | R410A/990g | |||||
Ambient temperature | ℃ | -15~50 | ||||
Suitable area | m2 | 30~50 | ||||
Connecting Wiring |
| 4×0.75mm2 | ||||
Power supply cord | 3×1.5mm² | |||||
| 196 | |||||
Model Name | RSDC-24RTSI | |||||
Type | Cooling only | |||||
Control type | Remote | |||||
Power supply | Ph-V-Hz | 208-230V~/50Hz/1P | ||||
Voltage Range | V | 165~265 | ||||
Cooling | Capacity | Btu/h | 24000(4090~24900) | |||
Capacity | W | 7035(1200~7300) | ||||
Rated power Input | W | 2314(300~2800) | ||||
Rated current | A | 10.7(2.5~13.5) | ||||
EER | W/W | 3.04 | ||||
Max power Input | W | 2800 | ||||
Max current | A | 13.5 | ||||
Indoor coil | a.Number of rows | 2 | ||||
b.Tube pitch(a)x row pitch(b) | mm | 21×12.7 | ||||
c.Fin spacing | mm | 1.4 | ||||
e.Tube outside dia.and type | mm | Φ7,innergroove tube | ||||
f.Coil length x height x width | mm | / | ||||
g.Number of circuits | 4 in 4 out | |||||
Outdoor coil | a.Number of rows | 2 | ||||
b.Tube pitch(a)x row pitch(b) | mm | 19.5×11.6 | ||||
c.Fin spacing | mm | 1.2 | ||||
e.Tube outside dia.and type | mm | Φ5,innergroove tube | ||||
f.Coil length x height x width | mm | / | ||||
g.Number of circuits | 3 in 3 out | |||||
Indoor unit | Dimension(W*D*H) | mm | 1010×315×220 | |||
Packing (W*D*H) | mm | 1096×390×297 | ||||
Net/Gross weight | Kg | 13/16 | ||||
Outdoor unit | Dimension(W*D*H) | mm | 853×349×602 | |||
Packing (W*D*H) | mm | 890×385×628 | ||||
Net/Gross weight | Kg | 30/35 | ||||
Pressure | High(DP) | MPa | 4.5 | |||
Low(SP) | MPa | 1.9 | ||||
Refrigerant | R410A/990g | |||||
Ambient temperature | ℃ | -15~50 | ||||
Suitable area | m2 | 30~50 | ||||
Connecting Wiring |
| 4×0.75mm2 | ||||
Power supply cord | 3×1.5mm² | |||||
| 196 | |||||
N/A
N/A
N/A
10 Years’ Compressor & 02 Years’s Parts & Service.
