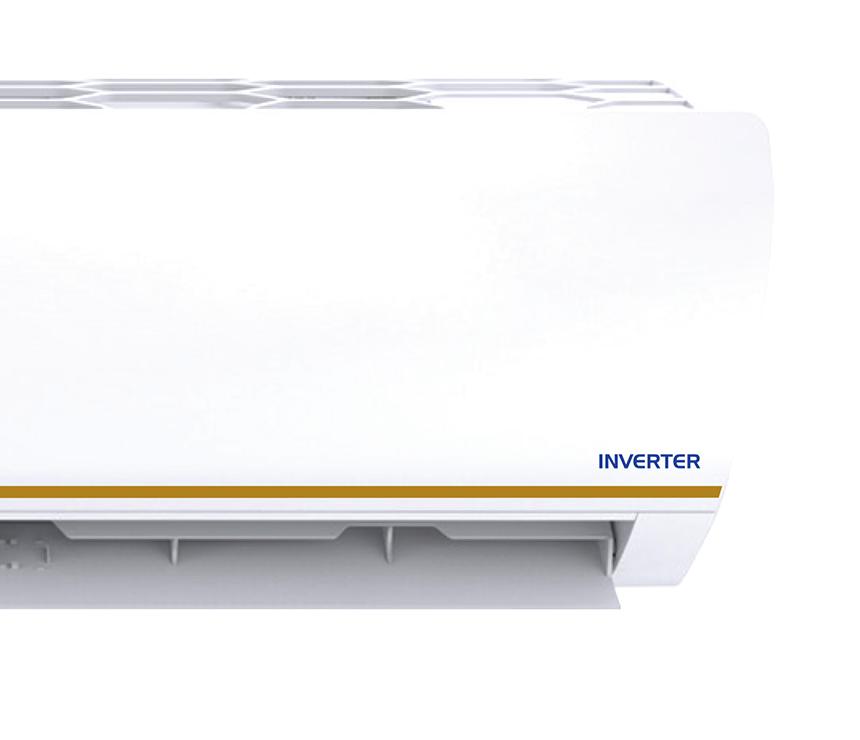

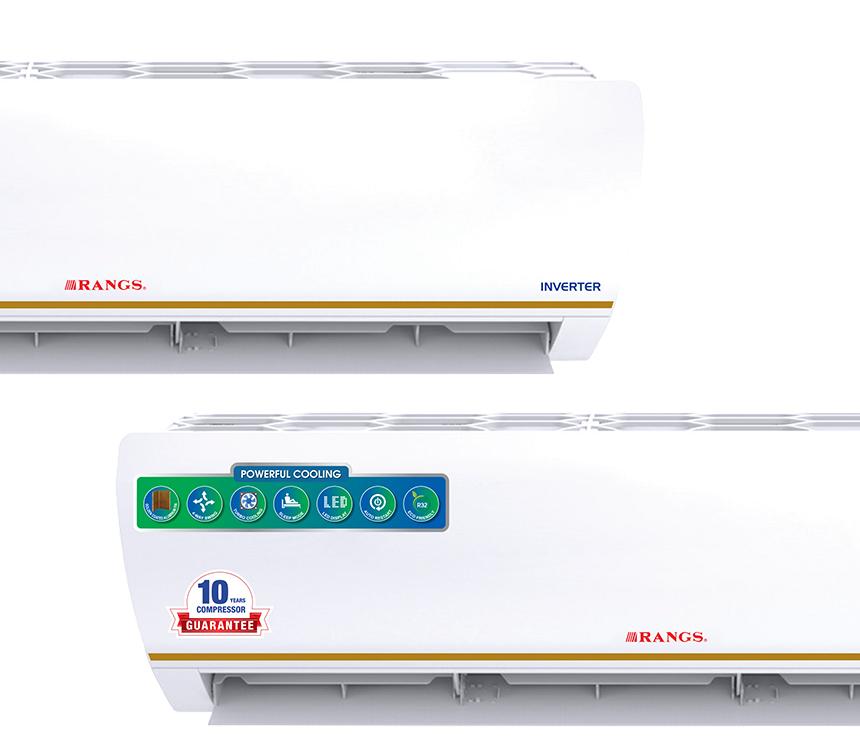

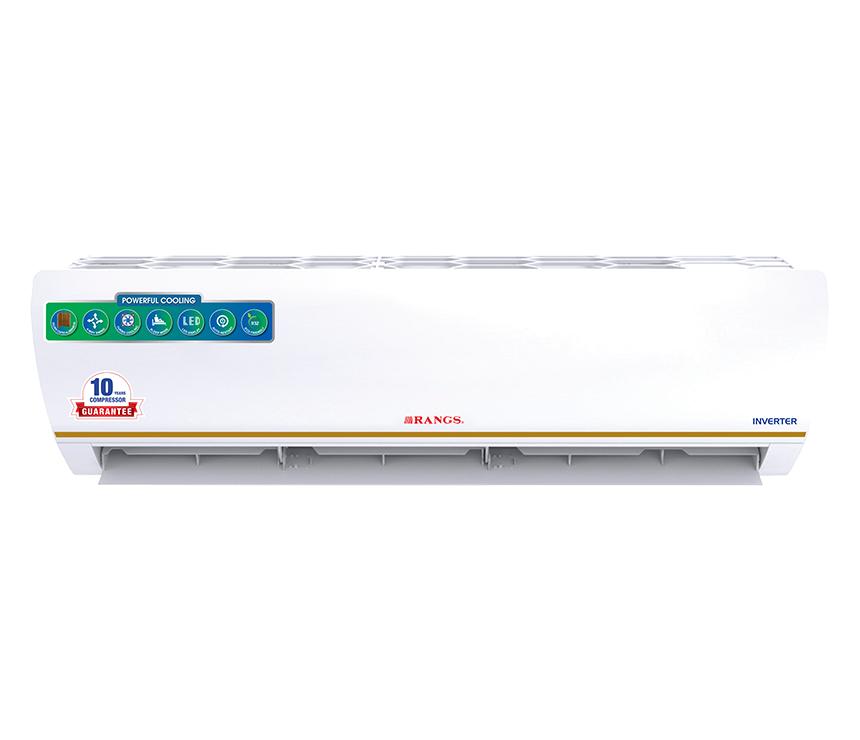

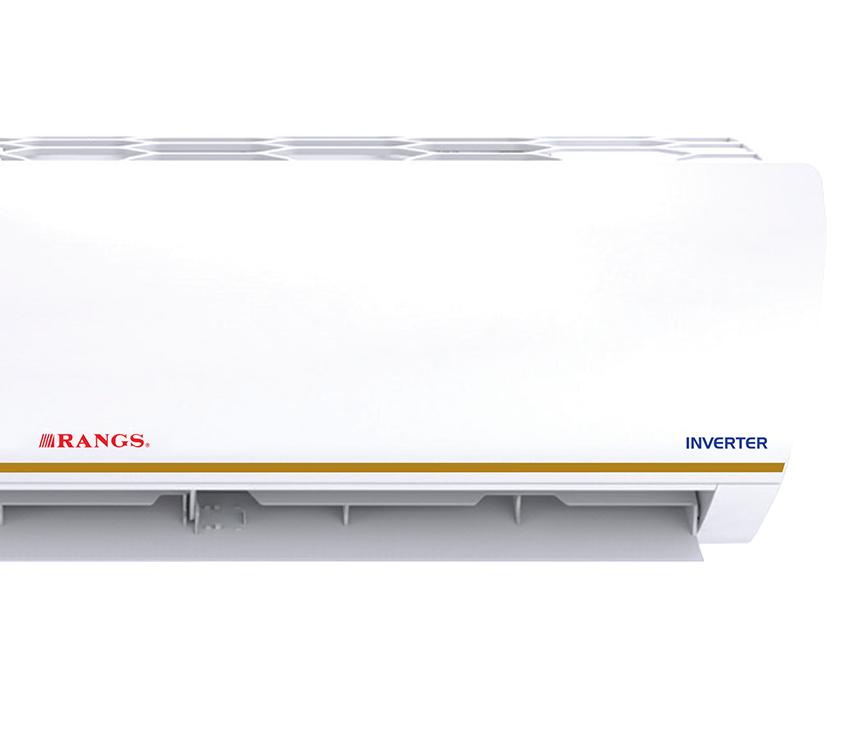

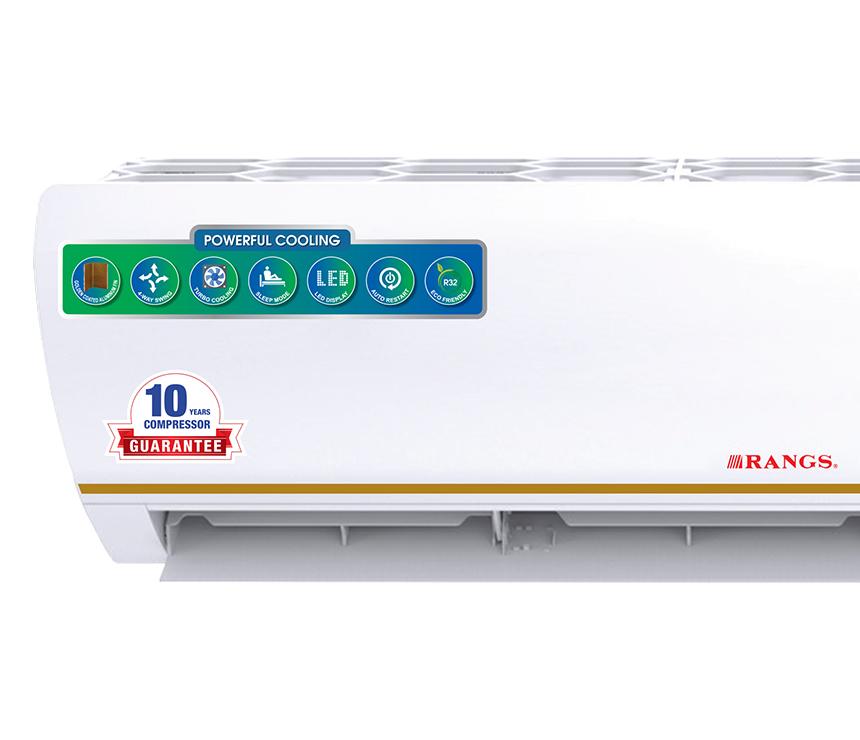

RANGS 1.5 TON PREMIUM SERIES INVERTER SPLIT TYPE AC
Reviews
Model:
RAC-20INVSHSHARE:
PARAMETERS | UNITS | RAC-20INVSH | ||
About Model | Type of AC : | Split / Window/Light Commercial/VRF/Chiller | Details | Split |
Fixed Speed / Inverter | Details | Inverter | ||
Cooling only/ Heating & cooling | Details | Cooling only | ||
Product selling area | Country name | Details | Bangladesh | |
Operating Conditions | Power supply | Rated Voltage & phase | Volts | 230V, Single |
Rated frequency | Hz | 50 | ||
Withstanding Voltage & Frequency | V-Hz | 130V-280V-50HZ | ||
Withstanding Operating conditions : ODU | °C | 20-46 | ||
Cooling Area | m2 | 120-180 sq feet | ||
Performance | Cooling | Capacity(Rated) | Watt | 5275 |
Power(Rated) | Watt | 1740 | ||
EER(Rated) | W/W | 3.03 | ||
Cooling Input Current | A | 7.6 | ||
Max. Input Power | Watt | 2180 | ||
Max. Input Current | A | 9.6 | ||
Motor | Motor Type : Single Phase Induction | Details | Wolong, YYW35-4-5200A | |
Motors Mechanical output Wattage | Watt | 35 W | ||
Capacitor | uF | 2.0 uF | ||
Indoor Fan speed (Rated) | r/min | 1160 | ||
Thermal protector | Yes/ No | Yes | ||
Indoor Unit Information | Fan | Dimensions (Dia* Length) | mm | Φ108, L- 704±1 |
Material of Blades | Details | SAN 30% GF | ||
Evaporator | Rows * Tubes | No's | 2*16 | |
Tube pitch (a) x row pitch (b) | mm | 21x12.7 | ||
Hairpin copper tube length | mm | 749 | ||
Tube specification | mm | Ø7*0.25 + 0.18 | ||
Tube Material & Grade | Details | DHP COPPER, C12200 | ||
Fin spacing | mm | 1.2 | ||
Fin type | Details | Louvered | ||
Fin Material | Details | Al(Golden coated) | ||
Other | Filter Type | Details | Mesh Filter | |
Power cord & Plug | Details | Yes, 1.5 Meter | ||
Connecting wire between IDU & ODU : Length | Meter | 3.5 | ||
Compressor | Preferred Model | Details | KSN133D21UFZ(GMCC) | |
Type : Fixed speed / Inverter | Details | Inverter | ||
Inverter Frequency Range : Min to Max | Hz | 10-120 | ||
Locked rotor Amp(LRA) | A | N/A | ||
Over load Protector (Location) | Details | N/A | ||
Capacitor (If applicable) | uF | N/A | ||
Fan motor | Motor Type : Single Phase Induction | Details | Wolong, YYW35-6-7287 | |
Motors Mechanical output Wattage | Watt | 35 W | ||
Capacitor | μF | 3.0 uF | ||
Outdoor Fan speed | R/min | 880 | ||
or Unit Information | Thermal protector | Yes/ No | Yes | |
Fan | Dimensions (Dia* Hight) | mm | Φ400, H-115 | |
Number of Blades | No's | 3 | ||
Material of Blades | Details | ABS 20%GF | ||
Condenser | Rows*Tubes | No's | 2*26 | |
Tube pitch(a)x row pitch(b) | mm | 19.5*11.6 | ||
Hairpin Copper tube length | mm | 810/480 | ||
Tube specification | mm | Ø5*0.20 + 0.15 | ||
Tube Material & Grade | Details | DHP COPPER, C12200 | ||
Fin spacing | mm | 1.1 | ||
Fin Type | Details | Slit | ||
Fin Material | Details | Al(Golden coated) | ||
Other | Gas/ Refrigerant Type | Details | R32 | |
Gas/ Refrigerant Qty | KG | 0.66 | ||
PARAMETERS | UNITS | RAC-20INVSH | ||
About Model | Type of AC : | Split / Window/Light Commercial/VRF/Chiller | Details | Split |
Fixed Speed / Inverter | Details | Inverter | ||
Cooling only/ Heating & cooling | Details | Cooling only | ||
Product selling area | Country name | Details | Bangladesh | |
Operating Conditions | Power supply | Rated Voltage & phase | Volts | 230V, Single |
Rated frequency | Hz | 50 | ||
Withstanding Voltage & Frequency | V-Hz | 130V-280V-50HZ | ||
Withstanding Operating conditions : ODU | °C | 20-46 | ||
Cooling Area | m2 | 120-180 sq feet | ||
Performance | Cooling | Capacity(Rated) | Watt | 5275 |
Power(Rated) | Watt | 1740 | ||
EER(Rated) | W/W | 3.03 | ||
Cooling Input Current | A | 7.6 | ||
Max. Input Power | Watt | 2180 | ||
Max. Input Current | A | 9.6 | ||
Motor | Motor Type : Single Phase Induction | Details | Wolong, YYW35-4-5200A | |
Motors Mechanical output Wattage | Watt | 35 W | ||
Capacitor | uF | 2.0 uF | ||
Indoor Fan speed (Rated) | r/min | 1160 | ||
Thermal protector | Yes/ No | Yes | ||
Indoor Unit Information | Fan | Dimensions (Dia* Length) | mm | Φ108, L- 704±1 |
Material of Blades | Details | SAN 30% GF | ||
Evaporator | Rows * Tubes | No's | 2*16 | |
Tube pitch (a) x row pitch (b) | mm | 21x12.7 | ||
Hairpin copper tube length | mm | 749 | ||
Tube specification | mm | Ø7*0.25 + 0.18 | ||
Tube Material & Grade | Details | DHP COPPER, C12200 | ||
Fin spacing | mm | 1.2 | ||
Fin type | Details | Louvered | ||
Fin Material | Details | Al(Golden coated) | ||
Other | Filter Type | Details | Mesh Filter | |
Power cord & Plug | Details | Yes, 1.5 Meter | ||
Connecting wire between IDU & ODU : Length | Meter | 3.5 | ||
Compressor | Preferred Model | Details | KSN133D21UFZ(GMCC) | |
Type : Fixed speed / Inverter | Details | Inverter | ||
Inverter Frequency Range : Min to Max | Hz | 10-120 | ||
Locked rotor Amp(LRA) | A | N/A | ||
Over load Protector (Location) | Details | N/A | ||
Capacitor (If applicable) | uF | N/A | ||
Fan motor | Motor Type : Single Phase Induction | Details | Wolong, YYW35-6-7287 | |
Motors Mechanical output Wattage | Watt | 35 W | ||
Capacitor | μF | 3.0 uF | ||
Outdoor Fan speed | R/min | 880 | ||
or Unit Information | Thermal protector | Yes/ No | Yes | |
Fan | Dimensions (Dia* Hight) | mm | Φ400, H-115 | |
Number of Blades | No's | 3 | ||
Material of Blades | Details | ABS 20%GF | ||
Condenser | Rows*Tubes | No's | 2*26 | |
Tube pitch(a)x row pitch(b) | mm | 19.5*11.6 | ||
Hairpin Copper tube length | mm | 810/480 | ||
Tube specification | mm | Ø5*0.20 + 0.15 | ||
Tube Material & Grade | Details | DHP COPPER, C12200 | ||
Fin spacing | mm | 1.1 | ||
Fin Type | Details | Slit | ||
Fin Material | Details | Al(Golden coated) | ||
Other | Gas/ Refrigerant Type | Details | R32 | |
Gas/ Refrigerant Qty | KG | 0.66 | ||
N/A
N/A
N/A
10 Years’ Compressor & 02 Years Parts & Service.
