PARAMETERS

UNITS

RAC-26SH

About MODEL

Type of AC :

Split / Window/Light Commercial/VRF/Chill

Details

Split

Fixed Speed / Inverter

Details

Fixed Speed

Cool only/ Heat & cool

Details

Cool only

Product selling

Country name

Details

Bangladesh

Capacity:

Cooling capacity

Watt

7034

Heating capacity

Watt

N/A

Operating Conditions

Power supply

Rated Voltage & phase

Volts

230V & Single

Rated frequency

Hz

50Hz

Running Condition

Withstanding Operating conditions

°C

20-43

Cooling Area

sq.ft

180-240

Lowest running voltage

Volts

170

Highest running voltage

Volts

264

Cooling

Capacity at rated condition (If required)

Watt

7034

Power consumption in rated condition

Watt

2280

Performance

Cooling data

SEER/EER/COP (If any special requirement)

W/W

3.08

Cooling Input Current

A

10.7

Max. Input Current

A

13.04

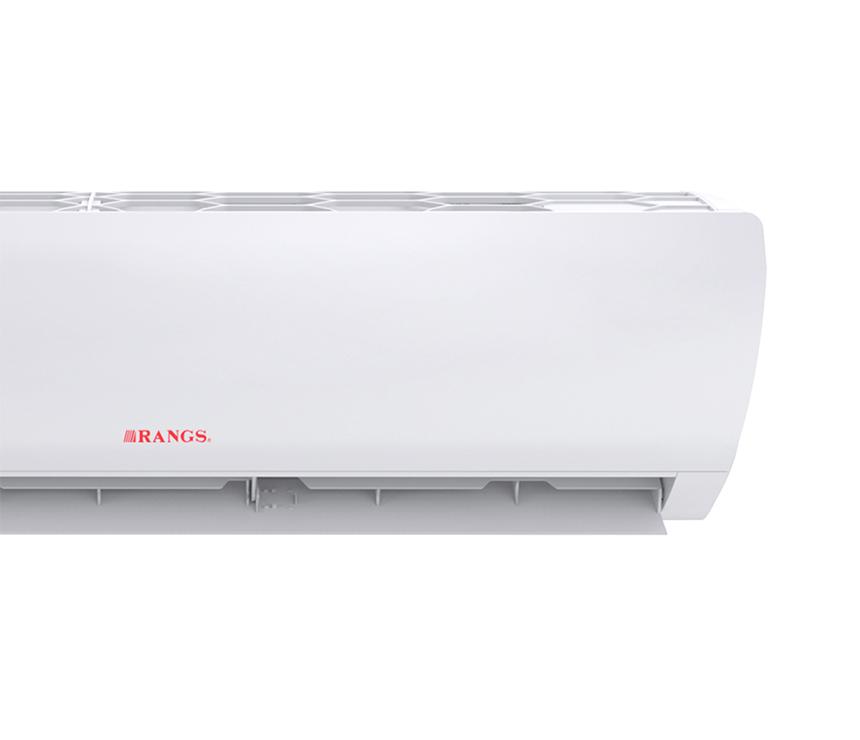

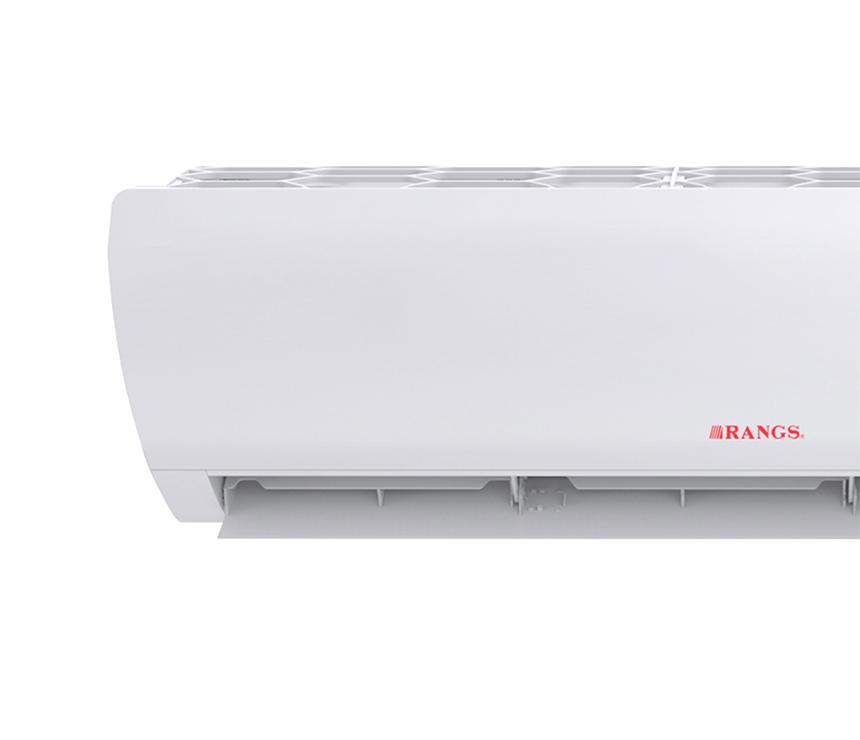

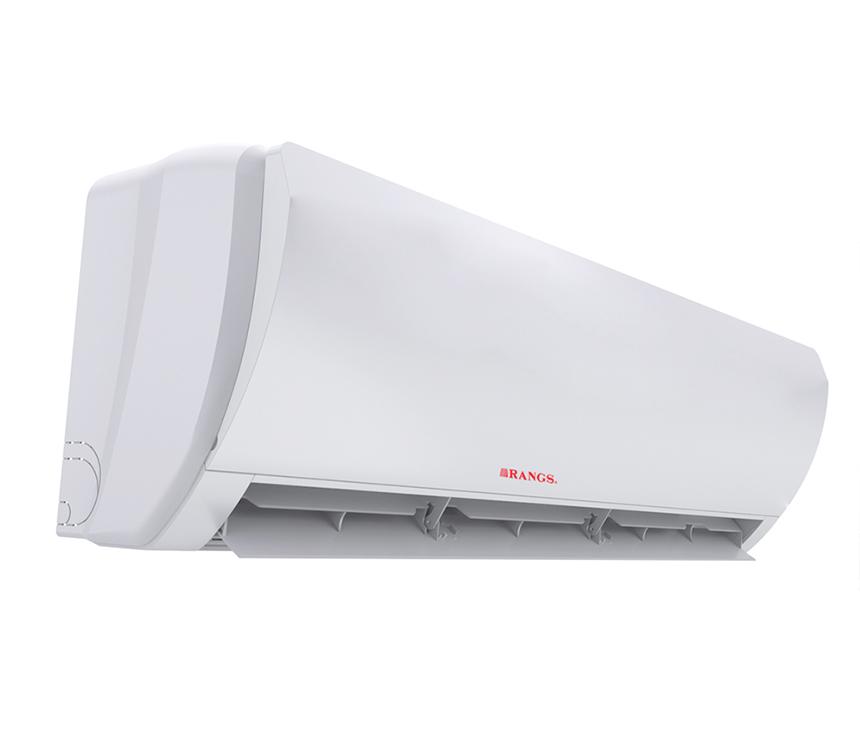

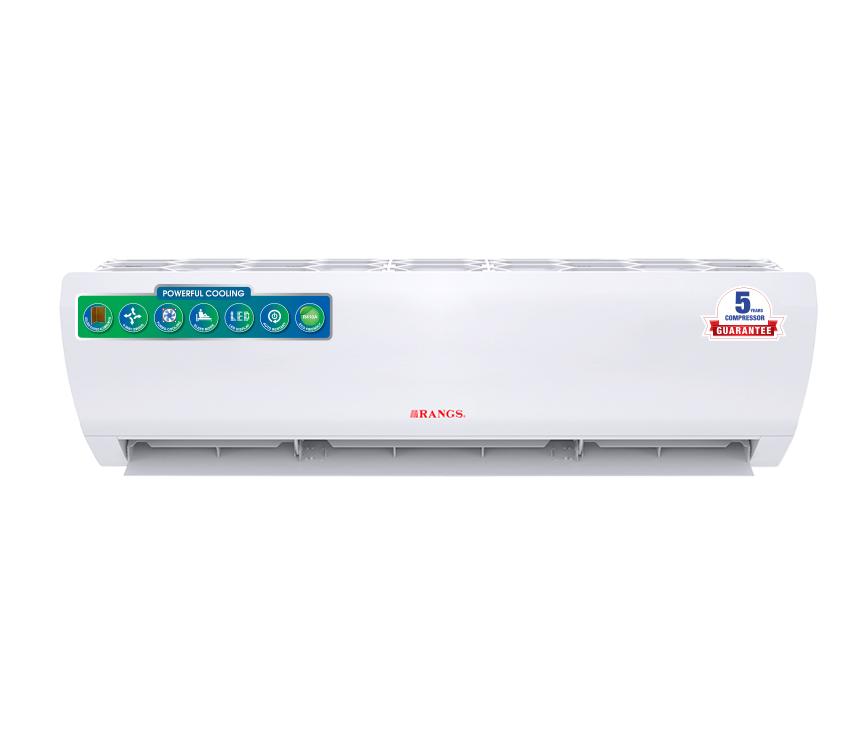

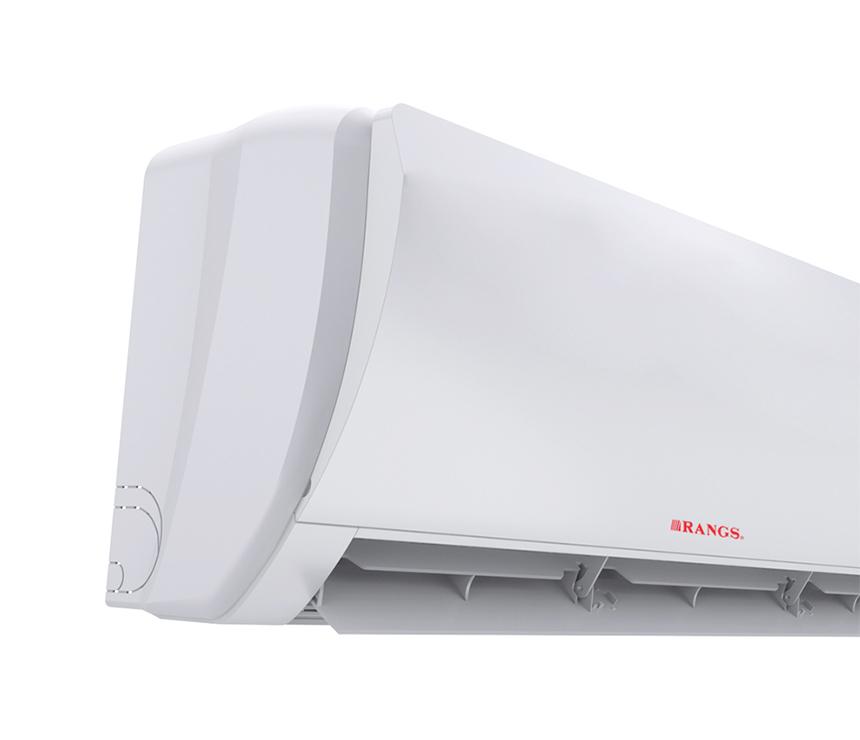

Indoor Unit Information

General

Indoor side air flow (High)

m3/h

1100

Indoor side noise level (High)

dB(A)

49

Dimensions (L*W*H)

mm

1097 x 329 x 258

Packing  (L*W*H)

mm

1175 x 405 x 310

Weight : Net & Gross

Kg

17±0.5  & 19±0.5

Motor

Motor Type : Single Phase Induction

Details

Induction (PG)

Motors Mechanical output Wattage

Watt

45

Capacitor

uF

3

Indoor Fan speed (Turbo/High/Medium/Low)

r/min

1220/1180/1100/1000

Thermal protector

Yes/ No

Yes

Fan

Dimensions (Dia* Length)

mm

Φ108, L- 841±1

Material of Blades

Details

SAN 30% GF

Evaporator

Rows * Tubes

No's

2*17

Tube pitch (a) x row pitch (b)

mm

21 x 12.7

Hairpin copper tube length

mm

892

Tube specification

mm

ODΦ7.0 x 0.25+0.18 IGT

Tube Material & Grade

Details

DHP COPPER,  C12200

Fin spacing

mm

1.2

Fin type

Details

Louvered

Fin Material (Bare or Golden/Blue/Silver Coa

Details

Aluminum (Hydrophilic Golden coated)

Control board

Transformer Base/ SMPS Base

Details

SMPS

PU/ Protective layer

Details

PU

EMI/EMC compatible

Details

NO

Details

NO

Display PCB : LCD Display/ 7Seg Display/
LED indicators

Details

LED Digit Display

Swing Motors : Qty , Purpose

Details

2, Left/right, Up/Down

Temperature sensor : Nos & Locations

Details

2, air inlet, Eva inlet

Other

Filter Type

Details

Mesh Filter

Power cord & Plug

Details

Yes, 1.5 Meter

Connecting wire between IDU & ODU : Leng

meter

3.5

Connecting tube(CU with insulation) between

meter

3±0.05

Outdoor

General

Outdoor side noise level (Turbo/High)

dB(A)

59-Turbo; 58-High

Dimension : L*W*H  (Including foot & servic

mm

865 x 370 x 687

Packing : L*W*H

mm

935 x 430 x 740

Weight : Net & Gross

Kg

46±1 & 52±1

Max. discharge/Suction pressure

MPa

4.30/1.30

Compressor

Preferred Model

Details

Lamda-QXA-F265F050

Type : Fixed speed / Inverter

Details

Fixed Speed

Inverter Frequency Range : Min to Max

Hz

N/A

Locked rotor Amp(LRA)

A

49.5 at 220V

Thermal protector

Yes/ No

Yes

Over load Protector (Location)

Details

internal

Capacitor (If applicable)

uF

50

Fan motor

Motor Type : Single Phase Induction

Details

Induction

Motors Mechanical output Wattage

Watt

55

Capacitor

μF

4

Outdoor Fan speed

R/min

850

Thermal protector

Yes/ No

Yes

Unit Information

Fan

Dimensions (Dia* Hight)

mm

Φ420, H-133

Number of Blades

No's

4

Material of Blades

Details

ABS 20%GF

Condenser

Rows*Tubes

No's

2*15

Tube pitch(a)x row pitch(b)

mm

21 x 12.7

Coil length

mm

800 OR; 775 IR

Tube outside & Inside diameter

mm

ODΦ7.0 x 0.25+0.18 IGT

Tube Material & Grade

Details

DHP COPPER,  C12200

Fin Type

Details

Slit

Fin spacing

mm

1.2

Fin Material

Details

Aluminum (Hydrophilic Golden
coated)

Expansion
device

Capillary/EEV

Capillary

Material (IF capillary)

Details

Copper Tube

PCB

PCB Protection : PU/ Protective layer

Details

NA

Details

NA

PFC: Active/passive

NA

Temperature sensor Nos & Locations

Details

NA

Other

Gas/ Refrigerant Type

Details

R-410a

Gas/ Refrigerant Qty

KG

1.48

Remote

Yes/No

Pcs

Yes

RF / IR Based

Details

IR

Frequency

MHz

16

Operating Range

Meter

8

Display

Yes/ No

LCD

Packaging

Number of Ply : 3/5/7/Other

Details

5 Ply

GSM

GSM

Indoor: 908±10, Outdoor: 936 ±10

Details

B+C

BS (Bursting Strength)

psi

160-180

EPS (Thermocol) Locations : Bottom, Side, Top, other (Pls Specify)

Details

IDU : Two Sides
& ODU: Bottom & Top
