Important Safety Information

Please read all instructions carefully before using the appliance. Retain this manual for future reference.

General Safety Precautions:

• Electrical Safety: This appliance operates on 220-240 volts. Do not attempt to use it with a different voltage supply. Ensure proper grounding.
• Placement: Place the microwave on a flat, stable surface. Ensure adequate ventilation around the unit.
• Child Safety Lock: Utilize the child lock feature to prevent accidental operation by children. Refer to the "Operating Instructions" section for details on activating/deactivating this feature.
• Food Safety: Do not overheat liquids or food. Always use microwave-safe cookware.
• No Metal in Microwave: Do not use metal containers or utensils in microwave mode. Metal is safe for grill mode only.
• Door Operation: Do not operate the oven if the door is damaged or does not close properly.
• Maintenance: Only qualified service personnel should perform repairs.

WARNING: This appliance is designed for 220-240V regions and is NOT suitable for use in North America (USA, Canada) due to voltage incompatibility.

3. Setup and Installation

Unpacking:

1. Carefully remove the microwave oven and all packing materials from the carton.
2. Remove any protective film or tape from the exterior and interior surfaces.
3. Check the oven for any damage, such as a misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches, or dents inside the cavity or on the door. If any damage is present, do not operate the oven and contact customer service.

Component Assembly:

The microwave comes with a glass turntable and a roller ring. For grill function, a wire rack is also included.

1. Place the roller ring securely in the center of the microwave cavity.
2. Position the glass turntable on top of the roller ring, ensuring it sits properly on the central hub.
3. For grilling, place the wire rack on the glass turntable.

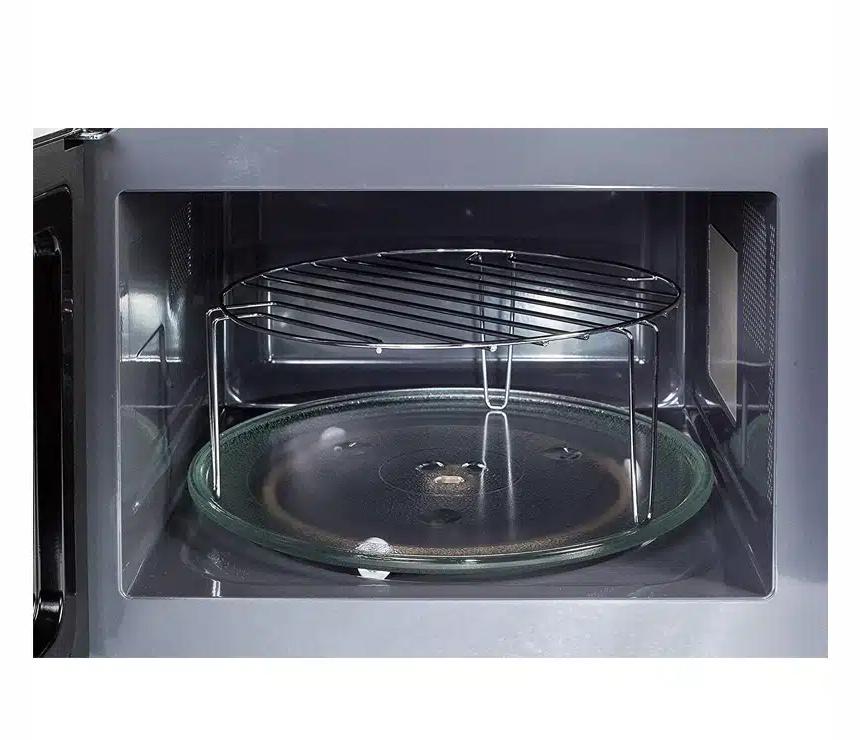

Figure 1: Interior of the microwave showing the glass turntable and metal grill rack. The rack is positioned on the turntable for grilling.

Electrical Connection:

• Ensure the power outlet is properly grounded and matches the voltage requirements (220-240V) of the microwave.
• Use the provided 2-round or 3-pin electrical adapters as needed for your region.
• Plug the microwave into a dedicated wall outlet. Do not use extension cords or multi-plugs.

Operating Instructions

Control Panel Overview:

Figure 2: The control panel features an LED display, numeric keypad, and dedicated buttons for functions like Popcorn, Potato, Frozen Pizza, Meat, Beverage, Reheat, Defrost, Grill/Combo, Power, and Time Cook.

Basic Microwave Cooking:

1. Place food in a microwave-safe container on the glass turntable.
2. Close the oven door.
3. Press the "Time Cook" button, then use the numeric keypad to enter the desired cooking time.
4. Press the "Power Level" button to select the desired power level (1-11).
5. Press "Start/+30Sec" to begin cooking.

Grill Function:

1. Place food on the wire rack (ensure it's on the glass turntable).
2. Close the oven door.
3. Press the "Grill/Combo" button once for grill mode.
4. Enter the desired grilling time using the numeric keypad.
5. Press "Start/+30Sec" to begin grilling.

Auto Cook Menus:

The microwave features 6 auto-cook menus for convenience:

• Popcorn
• Potato
• Frozen Pizza
• Meat
• Beverage
• Frozen Vegetable

To use an auto-cook menu, press the corresponding button (e.g., "Popcorn"), then select the quantity or weight if prompted, and press "Start/+30Sec".

Defrosting:

The oven offers both weight and time defrost options.

• Weight Defrost: Press "Weight/Time Defrost" once, enter the food's weight, and press "Start/+30Sec".
• Time Defrost: Press "Weight/Time Defrost" twice, enter the desired defrosting time, and press "Start/+30Sec".

Child Lock:

To activate the child lock, press and hold the "Stop/Clear" button for 3 seconds until "LOCK" appears on the display. To deactivate, repeat the process.

Video: Demonstrates the child lock feature and how to activate/deactivate it on a similar Sharp microwave model. The video shows pressing the "Unlock" button to enable or disable the door lock.

Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your Sharp microwave oven.

Cleaning the Exterior:

• Wipe the exterior with a soft, damp cloth and mild detergent.
• Avoid abrasive cleaners or scouring pads, as they can scratch the mirror finish.

Cleaning the Interior:

• Remove the glass turntable and roller ring. Wash them in warm, soapy water or in a dishwasher.
• Wipe the interior cavity with a soft, damp cloth. For stubborn food residue, place a bowl of water with lemon slices inside and microwave for a few minutes to loosen the grime, then wipe clean.
• Ensure the interior is dry before reassembling components and using the oven.

Cleaning the Grill Rack:

• The metal grill rack can be washed with warm, soapy water or in a dishwasher. Ensure it is completely dry before storage or reuse.
